Products
The RLT-VIKI-x is an independent video kit designed for use on launch vehicles. It is a modular, scalable, and flexible video telemetry system that can operate autonomously or be integrated with the launcher’s avionics system.
The RLT-VBAT-x is a high energy density, space-qualified modular 28V Li-MnO2 primary battery designed for launch vehicles and other rugged space applications. It features high current, low self-discharge, and no voltage delay. The battery assembly consists of 2 or 3 primary battery packs, each made from twenty SAFT M19HR cells in a 10S2P configuration. It is qualified for use on modern launch vehicles and offers a long shelf-life of over 10 years.

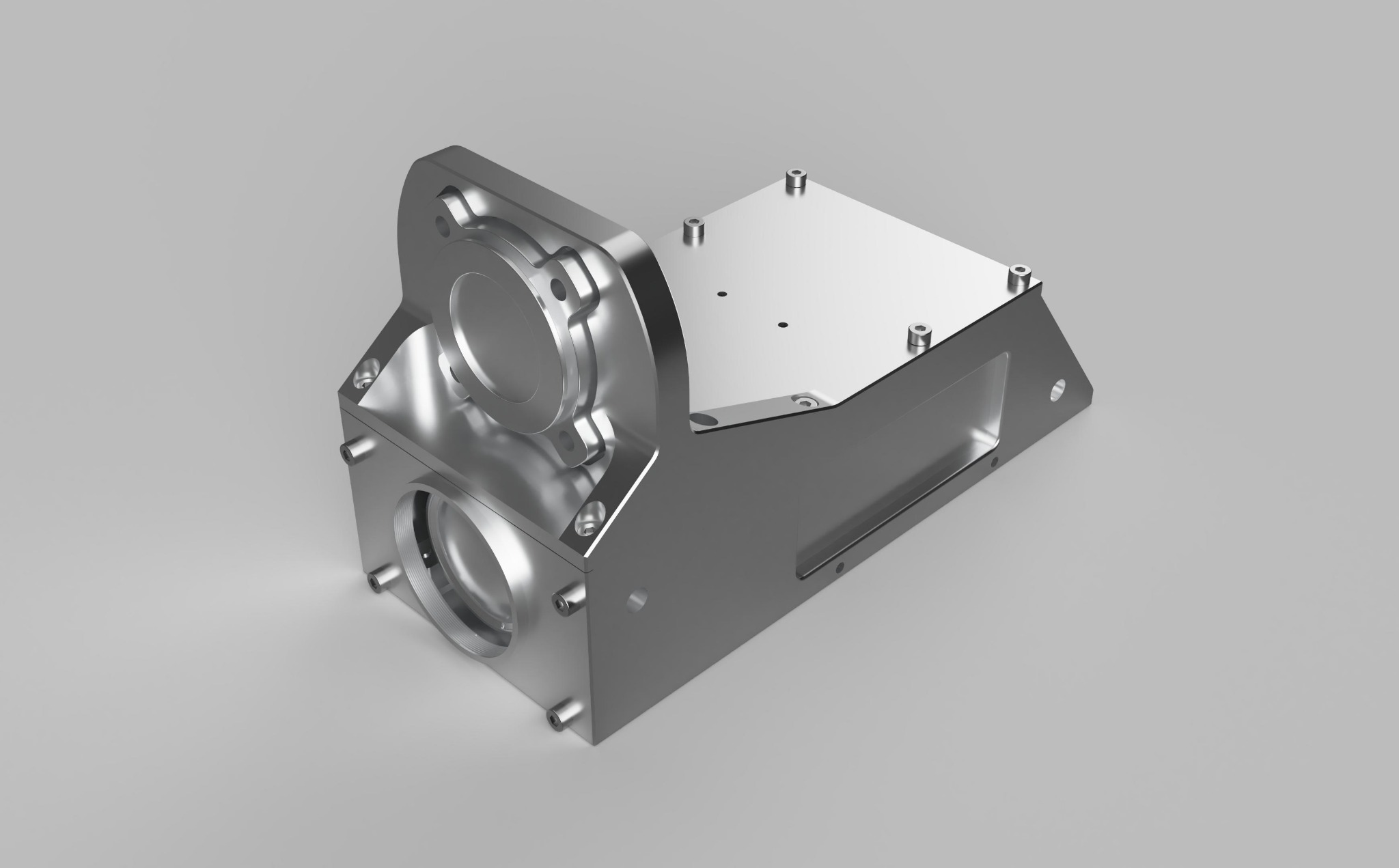

The RLT-NG1-001 is a high-definition video camera designed for use on launch vehicles. It features full HD video with H.265 compression and Ethernet output, a global shutter, and a 2.5MP CMOS sensor. The camera operates at high speeds with 60 fps and offers superior quality optics with narrow and wide-angle S-mount lenses. It is ruggedized for harsh space and launcher environments.
The RLT-TLM-x is a low-cost, modular, and fully qualified end-to-end telemetry kit designed for a wide range of launch vehicle types. It features high-quality interfaces, Ethernet-based networked units, programmable telemetry, timing and sequencing parameters, built-in Ethernet to CCSDS encoding, RF transmission over dual 10 W S-Band transmitters, and optional full HD video with H.265 compression.
The RLT-GNSS-x is a modular integrated GNSS Receiver Kit for use on launch vehicles. It is a modular and scalable telemetry positioning system that is designed to be operated in full integration with the launcher avionics system. It features RS232 and 100Mbps Ethernet capabilities, along with programmable telemetry, Positional, Velocity, and timing/sequencing parameters. The system is qualified for launcher and space environment operation and is available in single (one-channel) and dual (two-channel) modules.
RLT-ETH-x is a series of high-performance Ethernet switches designed for harsh space environments in partnership with TTTech. They simplify the design of complex distributed systems by allowing safe processing of both critical and non-critical Ethernet traffic on a single network. They support both synchronised and non-synchronised functions, ensuring system-critical hard real-time functions have reserved bandwidth, full determinism, and delivery jitter below 1 microsecond. The series consists of models with up to 4, 12, and 20 Ethernet ports.
Download the detailed RLT-ETH-04 datasheet (PDF) >
At Réaltra, we work closely with customers to develop bespoke products based on commercial-off-the-shelf (COTS) and/or rad-tolerant components.
To learn about our full range of current products, or to discuss your custom space electronic needs, contact us at info(at)realtra.space
